1987-1990 Acura Legend White Face Gauges

See 4 more pictures

1987-1990 Acura Legend White Face Gauges

RRP:: ~~$34.99~~
Your Price:: $19.99 (excluding tax) (You save $15.00)
SKU:: 8790AL-1497
Vendor:
Brand:
Weight:
Rating:: ()
Availability:: Usually ships in 1-2 business days. Color changes are custom made and take 7-14 business days to ship.
Shipping:: Calculated at checkout
Share It:: Share |
Current Stock:
Gift Wrapping:

Product Description

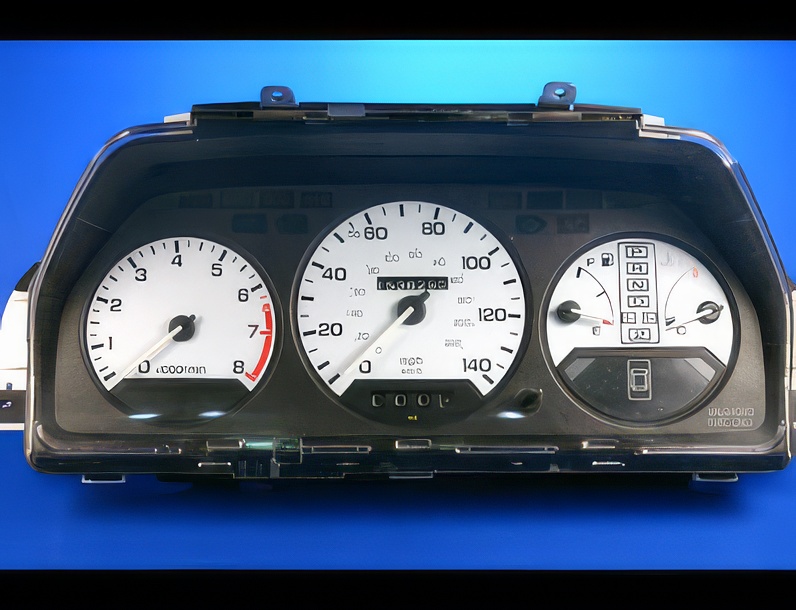

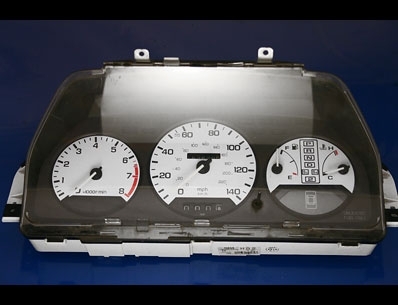

Pictures shown are of white face overlay only, we are not selling the gauge cluster assembly.
Printed and cut on transparent vinyl plastic for a perfect fit and allows warning lights to show through.
Needle removal is not required at all besides the clock, the white gauges easily slip over the needles.
Stock faces are not removed, our white gauges overlay on top of them and use the stock lighting.
Overlays do not wrinkle or bubble in the heat or cold and can be removed with direct heat if needed.

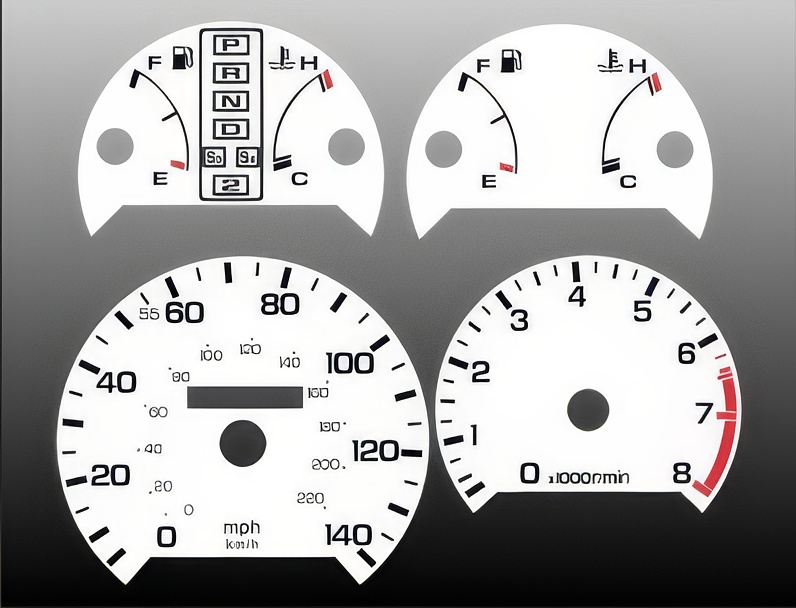

White Face Overlays in This Kit

- 140 MPH speedometer

- 8000 RPM tachometer

- Temperature gauge

- Small fuel gauge

- Shift Indicator gauge

- Printed install instructions

White Gauge Installation Video

This text will be replaced

Instructions & Bulb Details

Install Instructions:: Click to Download
LEDs Available:
LED 194 Quantity:: 1
LED 74 Quantity:: 7

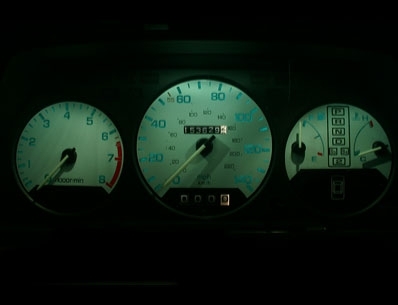

LED Notes:: The 74 bulb sockets in your cluster will need to be modified to fit the LED bulbs. You will need to remove a bit of the plastic to the sockets will fit back in the cluster after installing the bulbs. On the LEDs there are multiple ways to do it. Basically, you need to choose a back color, and then a front color. The back color will be how all the numbers and markings light up. The front color is how the faces and needles will illuminate. The back of the cluster uses 1 194HP bulb, and 4 74HP bulbs. So those 5 bulbs need to be either blue or green. The front lighting is done with 3 74 style bulbs, and they need to be opposite of whatever color you chose for the back. Red also works on the front.

Warranty Information

Our white face gauges are guaranteed to be free from defects in material and/or workmanship and to perform as advertised when properly installed in accordance with written instructions. Failure to adhere to and/or comply with operation manual instructions will void all associated warranty obligations. Should any part(s) prove defective we will replace it free of charge.
